Chart 3

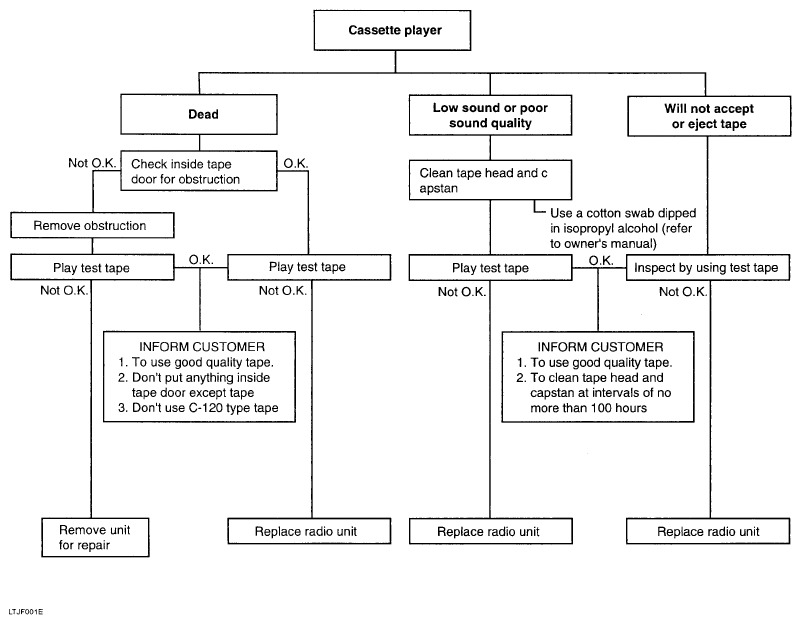

Fig 1: Troubleshooting Flow Chart - Cassette Player

G04884522

Courtesy of KIA MOTORS AMERICA, INC.
