Air Bag Module And Clock Spring: Components

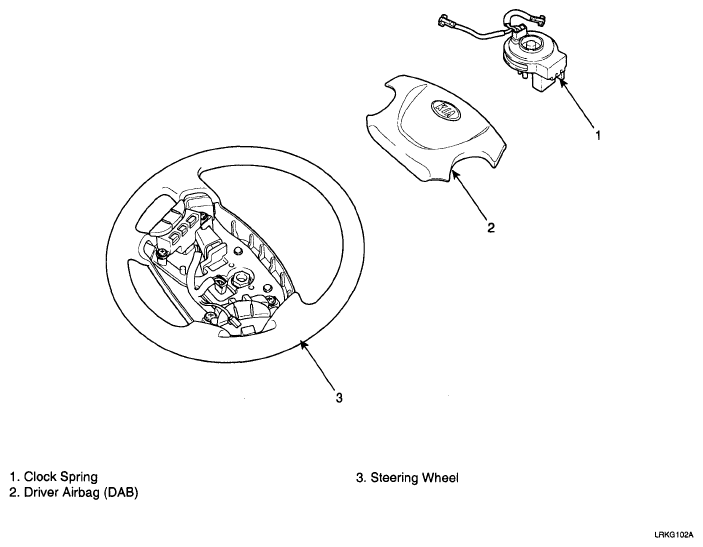

Fig 1: Identifying Air Bag Module Components (Drive Side)

G04882756

Courtesy of KIA MOTORS AMERICA, INC.
