Monitor SCANTOOL Data

Connect scantool to DLC (Data Link Connector)
Warm-up the engine to normal operating temperature.
Monitor "Actual Torque & Torque Request" parameters on scantool
Monitor DTC related to "ETS or CAM" on scantool

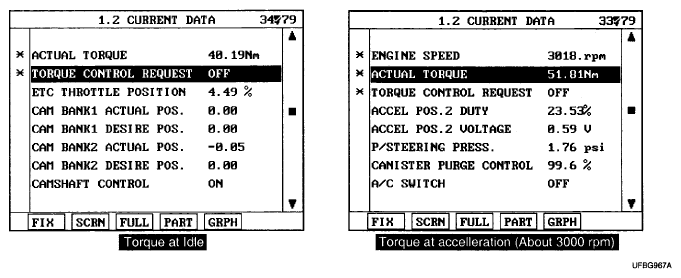

Fig 1: Scan Tool Display Screen - Actual Torque And Torque Request
Courtesy of KIA MOTORS AMERICA, INC.
Are there any DTC related to "ETS" or "CAM" on the scantool?
YES
- Repair "ETS" or "CAM" system first, then, go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
