Signal Waveform And Data

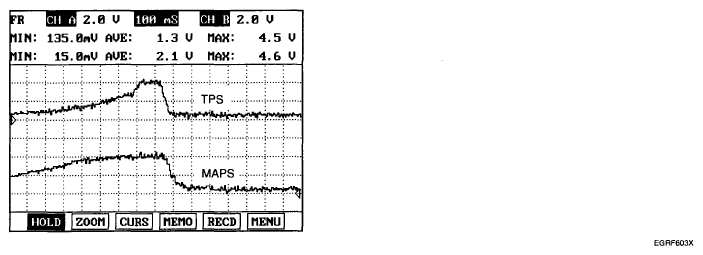

Fig 1: Signal Waveform Graph

G04804867

Courtesy of KIA MOTORS AMERICA, INC.

Comparing MAPS and TPS, The signals of MAPS and TPS increases and decrease simultaneously.
