Multi Function Switch Connector End Views & Locations

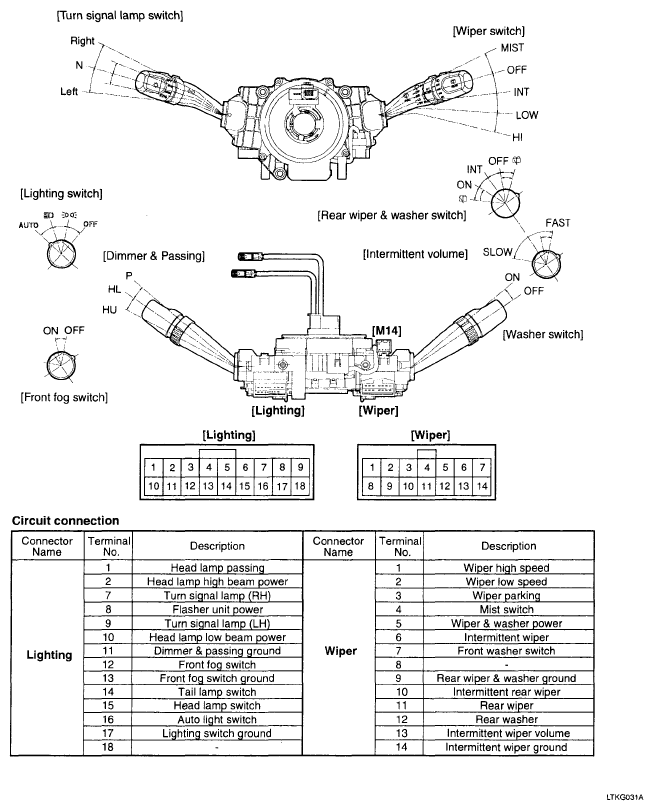

Fig 1: Multi Function Switch Connector End Views & Locations

G04884536

Courtesy of KIA MOTORS AMERICA, INC.
