Component Inspection

Check Multifunction switch
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Check combination of wiper signal while operating rearwiper switch.
  Specification:

  headlamp low → low beam `ON' & High beam `OFF'

  headlamp high → low beam `OFF' & High beam `ON'

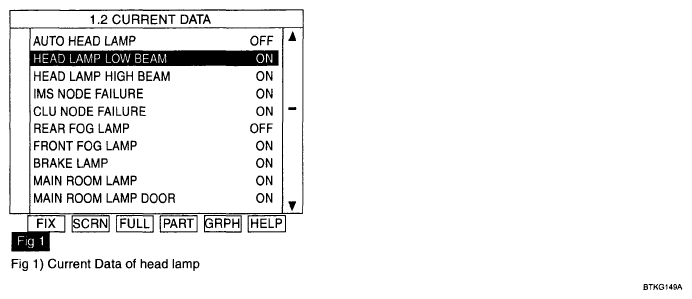

  Fig 1: Identifying Scantool Display - Current Data Of Headlamp
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured current data within specifications?
  YES

  Go to 2 "Check IPM" procedure.

  NO

  Substitute with a known-good multifunction switch and check for proper operation. If the problem is corrected, replace multifunction switch and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check IPM
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Substitute with a known-good IPM and Check if the DTC is erased.
4. Is the DTC erased?
  YES

  Substitute with a known-good IPM and check for proper operation.

  If the problem is corrected, replace IPM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

  Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
