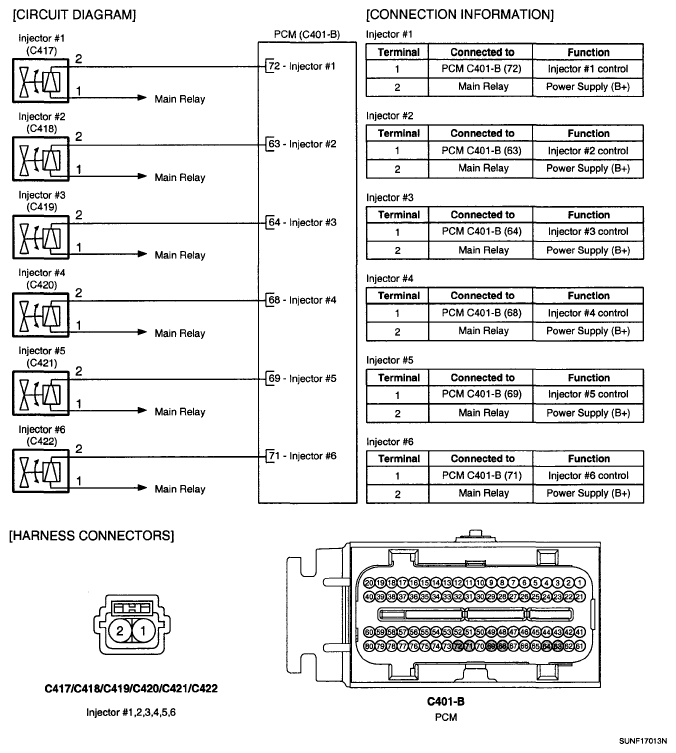

Home >> Kia >> 2007 >> Rondo EX, 2.7 4 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Gasoline Engine Control System (G6EA - GSL 2.7L) >> Injector >> Inspection >> Circuit Diagram
