Automatic Transaxle Control System (F4A42)
>>
Transaxle Range (Tr) Switch
>>
Description
>>
Inhibitor Switch
Inhibitor Switch
Type: Rotary contact type
Range of temperature : -40°C-145°C (-40°F-293°F)

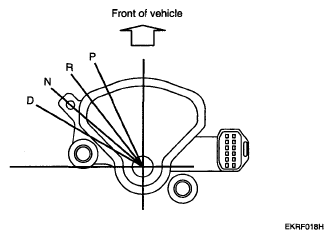

Fig 1: Identifying Inhibitor Switch
Courtesy of KIA MOTORS AMERICA, INC.
