Automatic Transaxle: Removal

  1. Remove the battery (A) with the mounting plate and bolt.

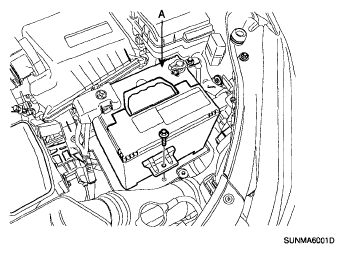

    Fig 1: Identifying Battery Mounting Plate And Bolt
    G05186440Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the engine cover.

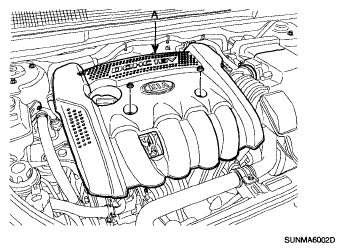

    Fig 2: Identifying Engine Cover
    G05186441Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the air cleaner upper body (B) after disconnecting the air flow sensor connector (A).

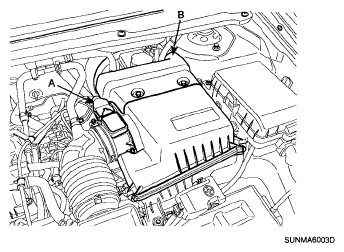

    Fig 3: Identifying Air Cleaner Upper Body And Air Flow Sensor Connector
    G05186442Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the PCM connector (A) and air cleaner under body (B).

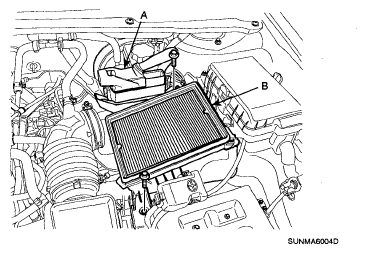

    Fig 4: Identifying PCM Connector And Air Cleaner Under Body
    G05186443Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the battery tray (A).

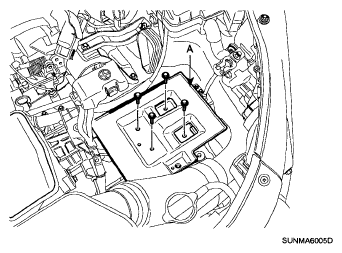

    Fig 5: Identifying Battery Tray
    G05186444Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the ground earth wire (A).

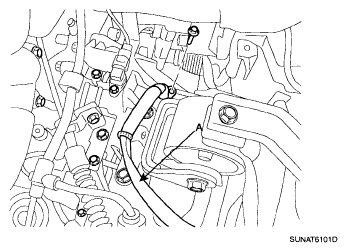

    Fig 6: Identifying Ground Earth Wire
    G05186445Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the inhibiter switch connector (A), solenoid valve connector (B) and the input shaft speed sensor connector (C).

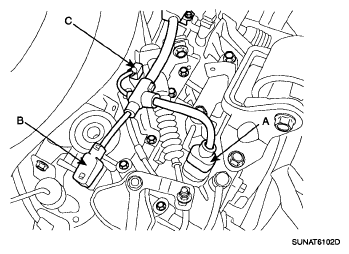

    Fig 7: Identifying Inhibiter Switch Connector, Solenoid Valve Connector And Input Shaft Speed Sensor Connector
    G05186446Courtesy of KIA MOTORS AMERICA, INC.
  8. Disconnect the output shaft speed sensor connector (A), and vehicle speed sensor connector (B).

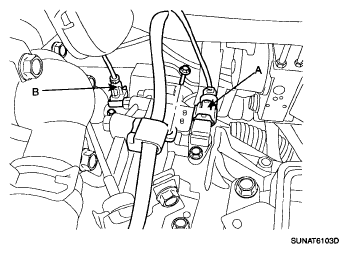

    Fig 8: Identifying Output Shaft Speed Sensor Connector And Vehicle Speed Sensor Connector
    G05186447Courtesy of KIA MOTORS AMERICA, INC.
  9. Detach the hoses (A), loosening the oil cooler hose clamps.
    Fig 9: Identifying Oil Cooler Hose
    G05186448Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the control cable assembly by removing the nut (B) and clip (A).

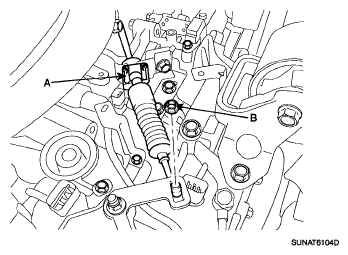

    Fig 10: Identifying Control Cable Assembly Nut And Clip
    G05186449Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the transaxle upper mounting bolts (A).
    Fig 11: Identifying Transaxle Upper Mounting Bolts
    G05186450Courtesy of KIA MOTORS AMERICA, INC.
  12. Disconnect the power steering pressure tube (A) from the power steering oil pump, (refer to STEERING SYSTEM )

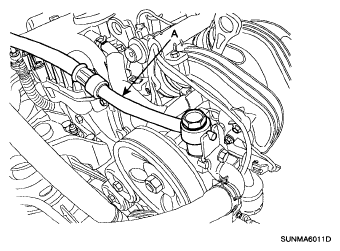

    Fig 12: Identifying Power Steering Pressure Tube
    G05186451Courtesy of KIA MOTORS AMERICA, INC.
  13. Using the SST (09200-38001), hold the engine and transaxle assembly safely.

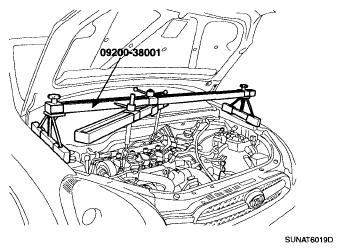

    Fig 13: Identifying SST (09200-38001)
    G05186452Courtesy of KIA MOTORS AMERICA, INC.
  14. Remove the front wheels and Lifting up the vehicle, remove the under cover.
  15. After removing the oil drain plug (A), drain the fluid.
    Fig 14: Identifying Oil Drain Plug
    G05186453Courtesy of KIA MOTORS AMERICA, INC.
  16. Drain power steering fluid through the return tube by loosening the clamp (A), (refer to STEERING SYSTEM )
    Fig 15: Identifying Power Steering Fluid Return Tube Clamp
    G05186454Courtesy of KIA MOTORS AMERICA, INC.
  17. Remove the lower arm ball joint assembly mounting bolts and tie rod end ball joint, (refer to SUSPENSION SYSTEM (EXCEPT TPMS) )
  18. Remove the stabilizer link mounting nuts, (refer to SUSPENSION SYSTEM (EXCEPT TPMS) )
  19. Remove the power steering column joint bolt (A), (refer to STEERING SYSTEM )
  20. Remove the front (B) rear (A) roll stopper mounting bolts, (refer to STEERING SYSTEM )
    Fig 16: Identifying Front Roll Stopper Mounting Bolts
    G05186455Courtesy of KIA MOTORS AMERICA, INC.
    Fig 17: Identifying Rear Roll Stopper Mounting Bolts
    G05186456Courtesy of KIA MOTORS AMERICA, INC.
  21. Remove the muffler hanger rubber (A).
    Fig 18: Identifying Muffler Hanger Rubber
    G05186457Courtesy of KIA MOTORS AMERICA, INC.
  22. Supporting the sub frame with a jack and the special tool (09624-38000), remove the mounting bolts, (see SUSPENSION SYSTEM (EXCEPT TPMS) ).

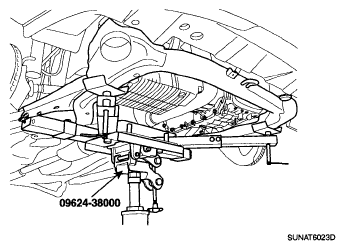

    Fig 19: Supporting Sub Frame With Jack And Special Tool (09624-38000)
    G05186458Courtesy of KIA MOTORS AMERICA, INC.
  23. Disconnect the driveshafts (A, B) from the transaxle. (see DRIVESHAFT AND AXLE )
    Fig 20: Identifying Driveshafts - RH
    G05186459Courtesy of KIA MOTORS AMERICA, INC.

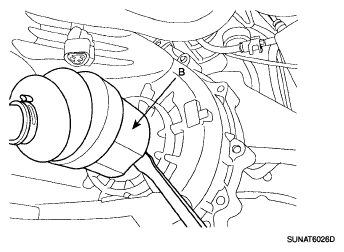

    Fig 21: Identifying Driveshafts - LH
    G05186460Courtesy of KIA MOTORS AMERICA, INC.
  24. Remove the left side cover (A).
    Fig 22: Identifying Left Side Cover
    G05186461Courtesy of KIA MOTORS AMERICA, INC.
  25. Remove the drive plate bolts (A).
    NOTE: Remove the bolts (A-6ea) rotating the crankshaft clockwise.
    Fig 23: Identifying Drive Plate Bolts
    G05186462Courtesy of KIA MOTORS AMERICA, INC.
  26. Remove the transaxle insulator mounting bolts (A).

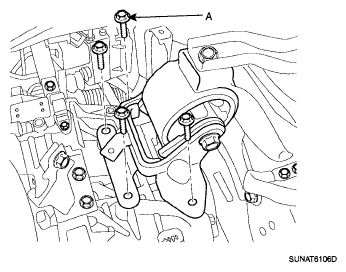

    Fig 24: Identifying Transaxle Insulator Mounting Bolts
    G05186463Courtesy of KIA MOTORS AMERICA, INC.
  27. Supporting the transaxle with a jack, remove the transaxle lower mounting bolts.

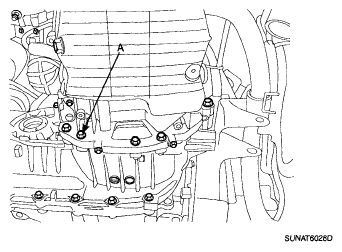

    Fig 25: Identifying Transaxle Lower Mounting Bolts
    G05186464Courtesy of KIA MOTORS AMERICA, INC.
