Home >> Kia >> 2007 >> Rondo Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System (F4A42) >> Automatic Transaxle >> Components (2)

Components (2)

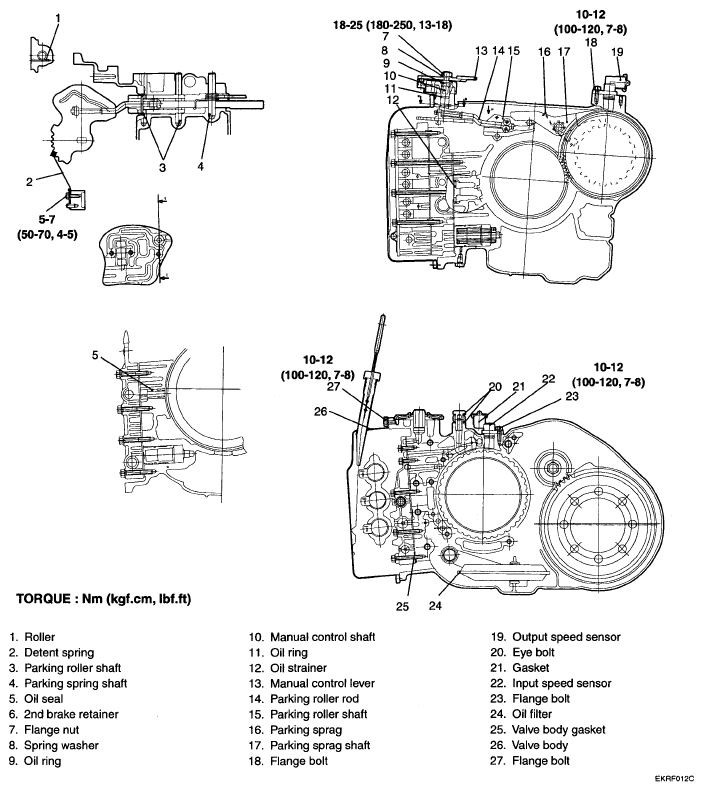

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications

G05186437

Courtesy of KIA MOTORS AMERICA, INC.
