Components (1)

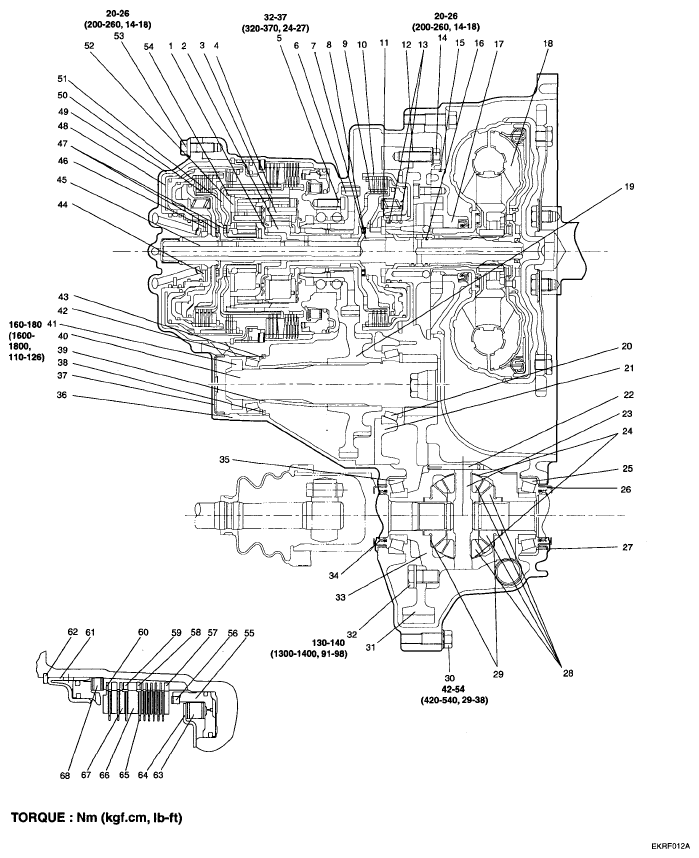

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 2)
G05186435Courtesy of KIA MOTORS AMERICA, INC.

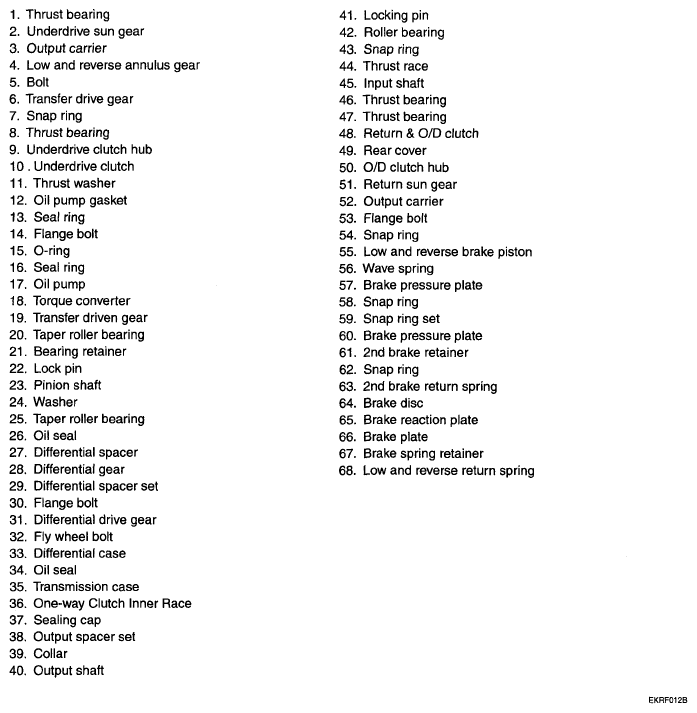

Fig 2: Automatic Transaxle Replacement Components With Torque Specifications (2 Of 2)
G05186436Courtesy of KIA MOTORS AMERICA, INC.
