Power Train: N-P

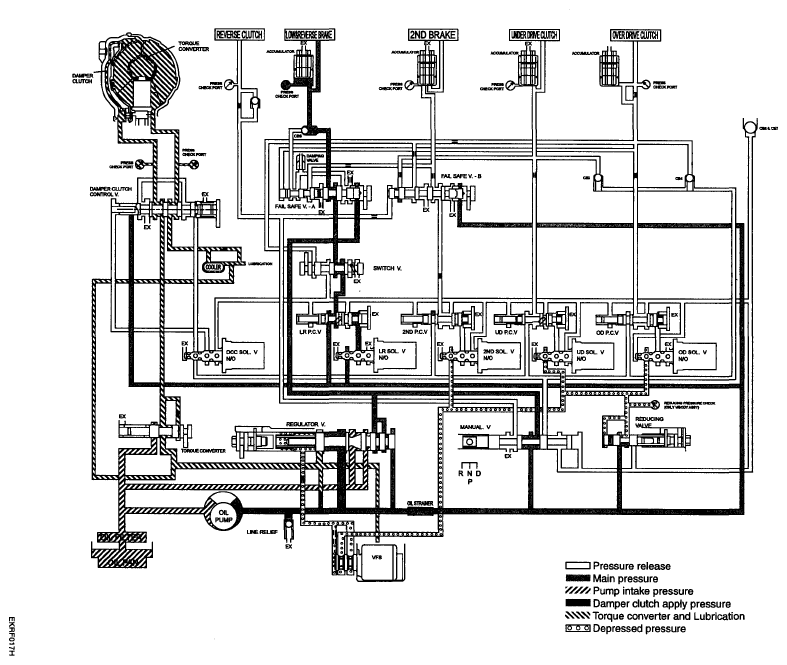

Fig 1: Hydraulic Pressure Diagram - N-P

G05186302

Courtesy of KIA MOTORS AMERICA, INC.
