D 1ST Gear

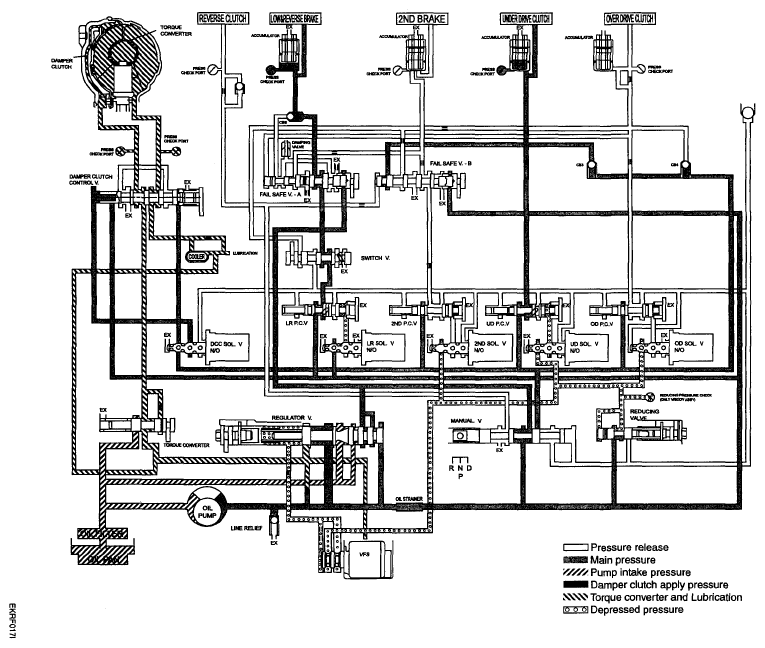

Fig 1: Hydraulic Pressure Diagram - D 1st Gear
G05186303Courtesy of KIA MOTORS AMERICA, INC.
