Component Location

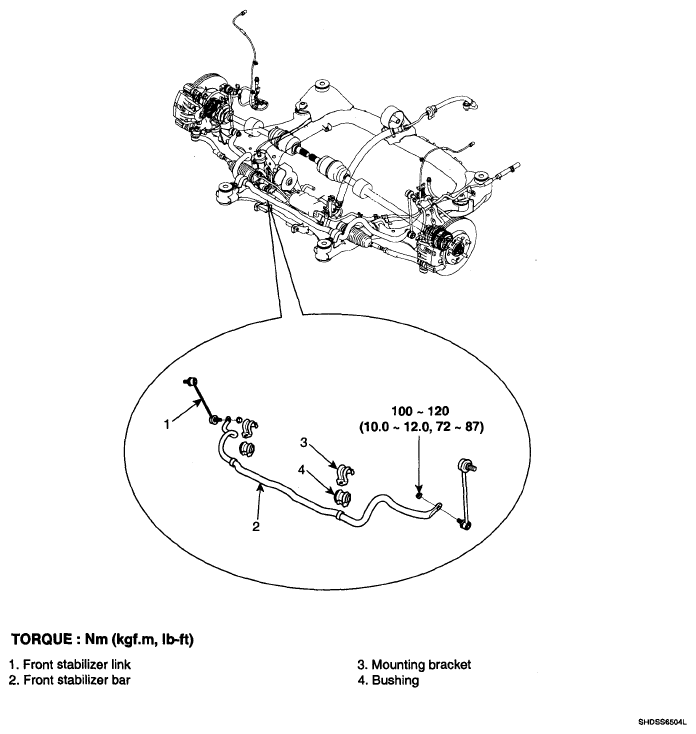

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications
G05186905Courtesy of KIA MOTORS AMERICA, INC.
