Steering Column & Shaft: Components

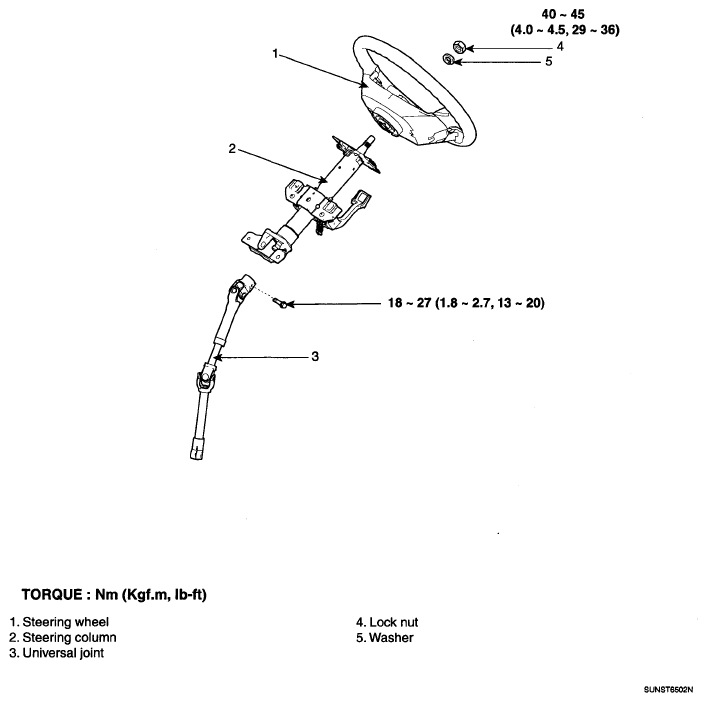

Fig 1: Exploded View Of Steering Column & Shaft Components With Torque Specifications

G05187044

Courtesy of KIA MOTORS AMERICA, INC.
