Power Steering Gear Box: Installation

  1. Install the steering gear box (A) to the sub frame by tightening the mounting bolts.

    Tightening torque N.m (kgf.m, lb-ft):

    60-80 (6.0-8.0, 43-58)

    Fig 1: Identifying Steering Gear Box With Mounting Bolts
    G05187091Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the pressure tube (A) and return tube (B) to the steering gear box and then tighten the flare nut.

    Tightening torque N.m (kgf.m, lb-ft):

    12-18 (1.2-1.8, 9-13)

    Fig 2: Identifying Pressure & Return Tubes
    G05187090Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the heat protector (A).
    Fig 3: Identifying Heat Protector
    G05187089Courtesy of KIA MOTORS AMERICA, INC.
  4. Install the rear roll stopper (A) to the sub-frame by tightening the mounting bolts.

    Tightening torque N.m (kgf.m, lb-ft):

    50-65 (5.0-6.5, 36-47)

    Fig 4: Identifying Rear Roll Stopper At Sub-Frame
    G05187088Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the return hose mounting bracket (A) to rear roll stopper.
    Fig 5: Identifying Return Hose Mounting Bracket Bolt
    G05187087Courtesy of KIA MOTORS AMERICA, INC.
  6. Install the sub-frame (A) and stay by tightening the mounting bolts.

    Tightening torque N.m (kgf.m, lb-ft):

    Sub-frame mounting bolt:

    160-180 (16.0-18.0, 116-130)

    Sub-frame stay mounting bolt:

    45-55 (4.5-5.5, 33-40)

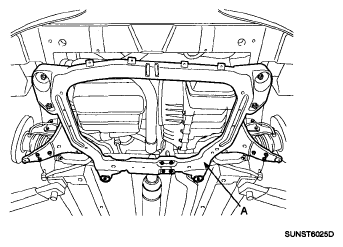

    Fig 6: Identifying Sub-Frame
    G05187086Courtesy of KIA MOTORS AMERICA, INC.
  7. Install the front and rear roll stopper through bolts and nut (A, B).

    Tightening torque N.m (kgf.m, lb-ft):

    50-65 (5.0-6.5, 36-47)

    Fig 7: Identifying Front Roll Stopper Through Bolts
    G05186914Courtesy of KIA MOTORS AMERICA, INC.
    Fig 8: Identifying Rear Roll Stopper Through Bolts
    G05186915Courtesy of KIA MOTORS AMERICA, INC.
  8. Connect the return hose (A).
    Fig 9: Identifying Return Hose
    G05187076Courtesy of KIA MOTORS AMERICA, INC.
  9. Install the muffler rubber hanger (A).
    Fig 10: Identifying Muffler Rubber Hanger
    G05186913Courtesy of KIA MOTORS AMERICA, INC.
  10. Connect the lower arm with the knuckle by tightening the bolts (A).

    Tightening torque N.m (kgf.m, lb-ft):

    100-120 (10.0-12.0, 72-87)

    Fig 11: Identifying Lower Arm Bolt
    G04805569Courtesy of KIA MOTORS AMERICA, INC.
  11. Connect the tie rod end with the knuckle and then install the castle nut and split pin.

    Tightening torque N.m (kgf.m, lb-ft):

    24-34 (2.4-3.4, 17-25)

  12. Connect the stabilizer link (A) with the front strut assembly and than tighten the nut.

    Tightening torque N.m (kgf.m, lb-ft):

    100-120 (10.0-12.0,72-87)

    Fig 12: Identifying Stabilizer Link With Nut
    G05186876Courtesy of KIA MOTORS AMERICA, INC.
  13. Connect the universal joint assembly (B) with the pinion of the steering gear box and then tighten the bolt (A).

    Tightening torque N.m (kgf.m, lb-ft):

    30-35 (3.0-3.5, 22-25)

    Fig 13: Identifying Universal Joint Assembly With Bolts
    G05186906Courtesy of KIA MOTORS AMERICA, INC.
  14. Connect the pressure tube to power steering pump by tightening the eye bolt.

    Tightening torque N.m (kgf.m, lb-ft):

    55-65 (5.5-6.5, 40-47)

  15. Add power steering fluid to reservoir.
  16. Bleed the power steering system. (Refer to AIR BLEEDING )
  17. Check and adjust front wheel alignment. (Refer to FRONT WHEEL ALIGNMENT )
