Power Steering Gear Box: Components

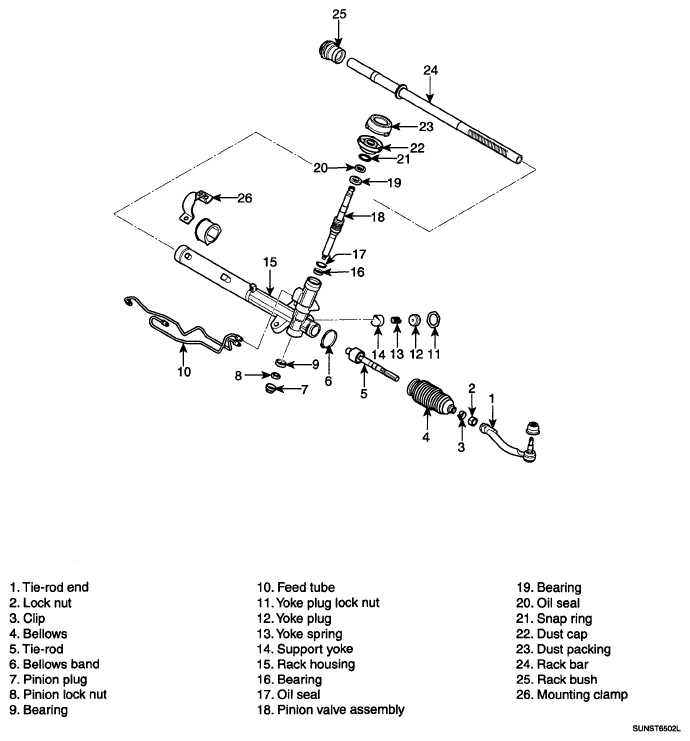

Fig 1: Exploded View Of Power Steering Gear Box Components

G05187075

Courtesy of KIA MOTORS AMERICA, INC.
