Monitor SCANTOOL Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "TRANSAXLE FLUID TEMPERATURE SENSOR" parameter on the scan tool.

    Specification : Increasing Gradually

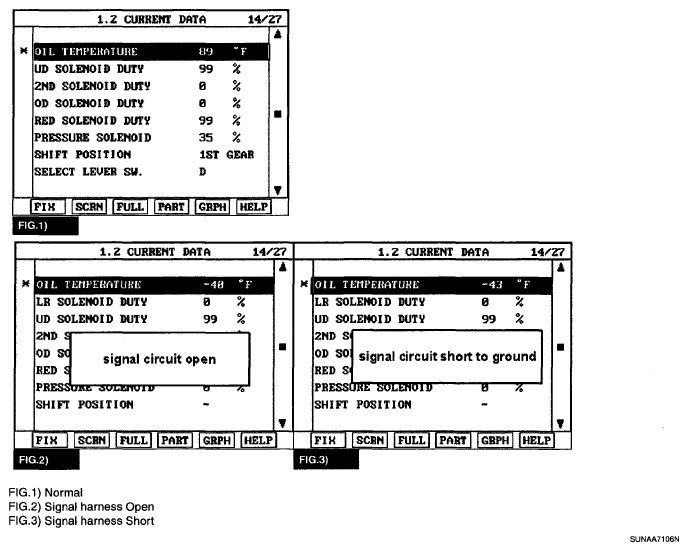

    Fig 1: Monitor Scantool Data - TRANSAXLE FLUID TEMPERATURE SENSOR Parameter
    G05186568Courtesy of KIA MOTORS AMERICA, INC.
  4. Does "TRANSAXLE FLUID TEMPERATURE SENSOR" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
