VFS (Variable Force Solenoid) Valve: Installation

WARNING: This page is about a different variant/trim than selected.

Install the solenoid valve (A).
CAUTION: Apply the ATF oil or White Vaseline to the O-ring not to be damaged.

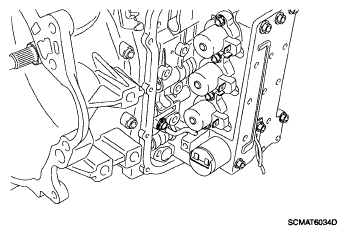

Fig 1: Identifying Solenoid Valve Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Connect the solenoid valve connector to the valve body.
CAUTION: When connecting the solenoid valve connector, check the connector for rust, dirt, or oil, then reconnect It.

Fig 2: Identifying Solenoid Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.
Continue to apply liquid gasket at application points at the oil pan with Ø2.5 mm (0.098 in.) thickness.
Liquid gasket Part name : Threebond 1281B

Fig 3: Applying Liquid Gasket At Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the mounting bolt with the specified torque after installing the oil pan.
TORQUE :

13-15 N.m (1.3-1.5 kgf.m, 9.4-10.8 lb-ft)
Install the drain plug and refill the transaxle fluid.
TORQUE :

40-50 N.m (4.0-5.0 kgf.m, 28.9-36.2 lb-ft)
Install the splash shield.
Lower the vehicle and install the battery terminal.
