Transaxle Range (Tr) Switch: Description
WARNING: This page is about a different variant/trim than selected.

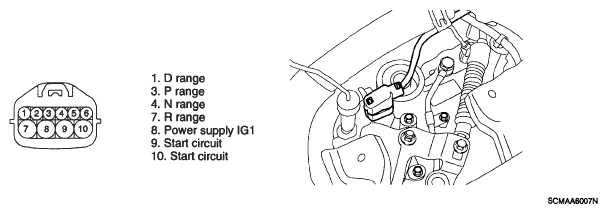

TRANSAXLE RANGE (TR) SWITCH DESCRIPTION
| Sensor type |
- Type : ROTARY
- Available temperature range : -40-150°C (-40-320°F)
- TORQUE : 10-12 N.m (1.0-1.2 kgf.m, 7-8 lb-ft)
|
| Function |
Detect the position of select lever through the contact switch. It makes starting possible in "P" and "N". |
