Front Wiper Motor: Inspection: Overview

  1. Install the wiper arm and blade to the specified position.
    WIPER ARM AND BLADE POSITION

    Specified position A B
    Distance [in (mm)] 1.26 ± 0.2 (32 ± 5) 1.26 ± 0.2 (32 ± 5)
    Fig 1: Identifying Wiper Arm And Blade Distance
    G05187944Courtesy of KIA MOTORS AMERICA, INC.
  2. Set the washer nozzle on the specified spray position.

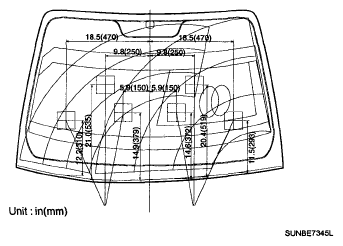

    Fig 2: Identifying Washer Nozzle Spray Point
    G05187945Courtesy of KIA MOTORS AMERICA, INC.
