Front Washer Motor: Inspection

  1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
  2. Connect positive (+) battery cables to terminal 1 and negative (-) battery cables to terminal 2 respectively.
  3. Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
  4. If they are abnormal, replace the washer motor (A).

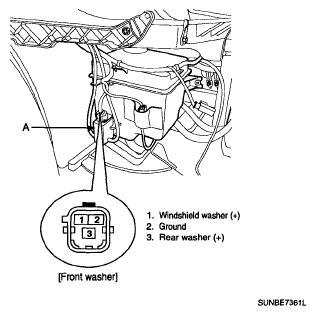

    Fig 1: Identifying Washer Motor
    G05187946Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Windshield And Rear Washer Motor Circuit Diagram
    G05187947Courtesy of KIA MOTORS AMERICA, INC.
