Component Location

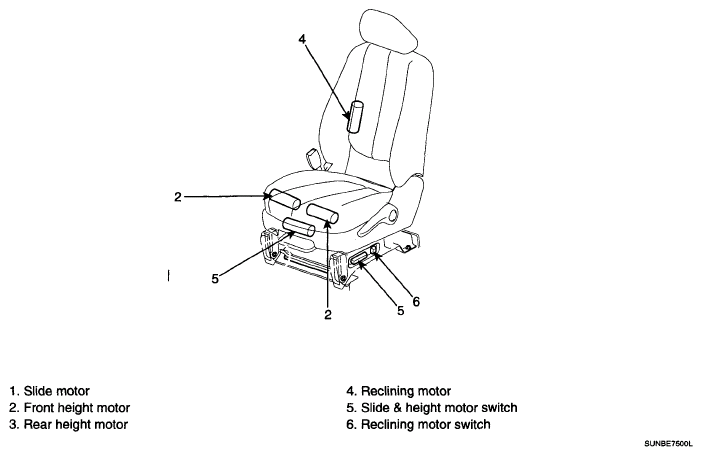

Fig 1: Identifying Power Seat Component Location

G05187969

Courtesy of KIA MOTORS AMERICA, INC.
