Component Location

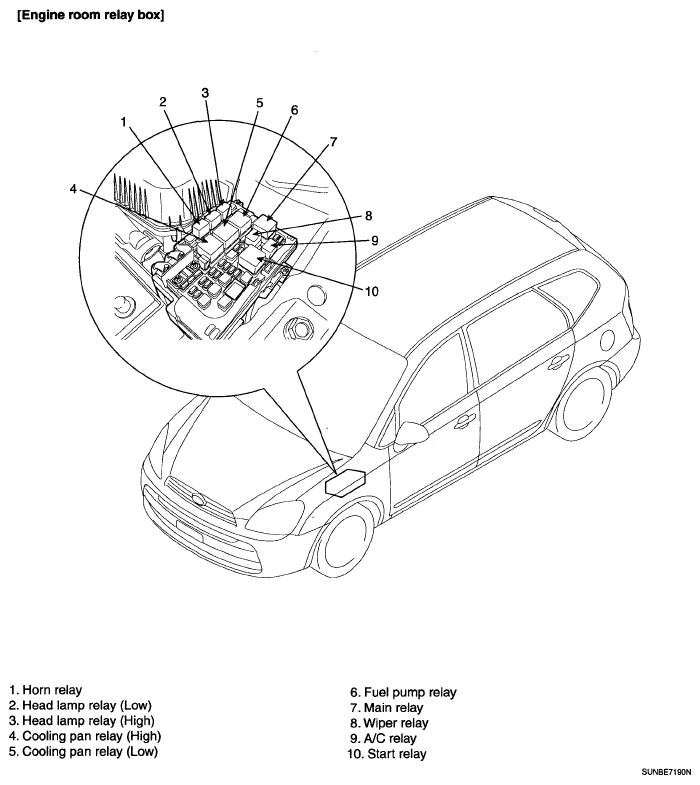

Fig 1: Identifying Fuses And Relays Component Location (1 Of 2)
G05187815Courtesy of KIA MOTORS AMERICA, INC.

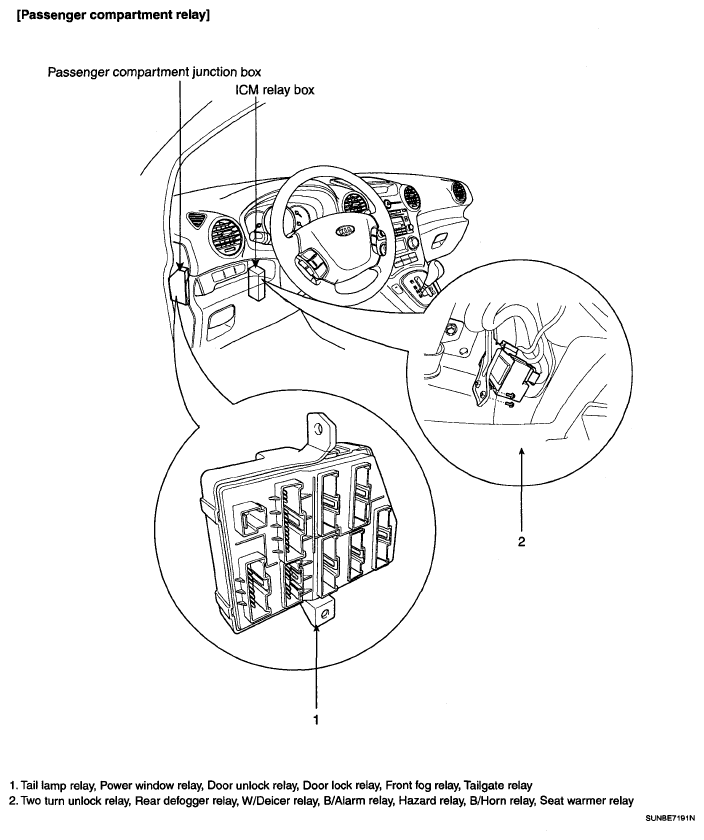

Fig 2: Identifying Fuses And Relays Component Location (2 Of 2)
G05187816Courtesy of KIA MOTORS AMERICA, INC.
