Operation Components And Function

OPERATION COMPONENTS AND FUNCTION

Operating Element Symbol Function
Under drive clutch UD Connect input shaft and under drive sun gear
Reverse clutch REV Connect input shaft and reverse sun gear
Overdrive clutch OD Connect input shaft and over drive carrier
Low & Reverse brake LR Hold LR annulus gear and OD carrier
Second brake 2ND Hold reverse sun gear
One way clutch OWC Restrict the rotating direction of low & reverse annulus gear

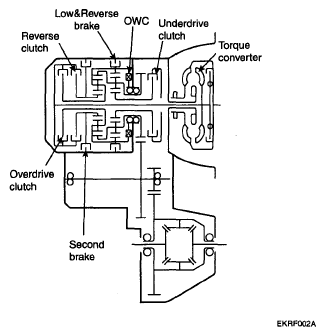

Fig 1: Operation Components And Function Diagram
G05186280Courtesy of KIA MOTORS AMERICA, INC.
