Monitor SCANTOOL Data

  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "INPUT SPEED SENSOR" parameter on the scantool.
  4. Driving at speed of over 19 Mile/h (30 Km/h).

    Specification : Increasing Gradually

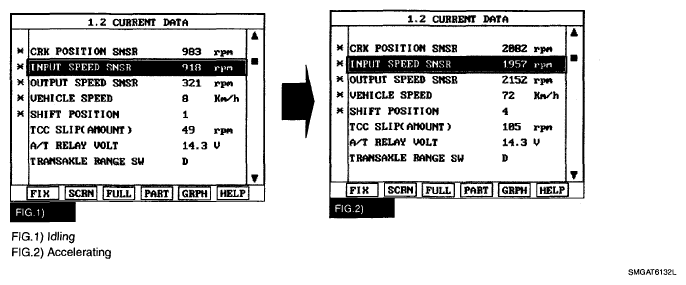

    Fig 1: Scantool Display - Input Speed Sensor
    G05186354Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "Input speed sensor" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
