Component Inspection
- Check "INPUT SPEED SENSOR"
- Ignition "OFF".
- Disconnect the "INPUT SPEED SENSOR" connector.

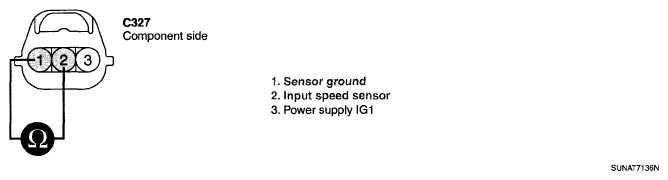

- Measure resistance between terminal "1", "2" and "2", "3" and "1", "3" of the "INPUT SPEED SENSOR" connector.
Specification : Refer to "REFERENCE DATA "
- Is resistance within specifications?
[REFERENCE DATA]
REFERENCE DATAData Reference Data Current 22 mA Air Gap Input sensor 1.3 mm Output sensor 0.85 mm Resistance Input sensor Above 4MΩ Output sensor Above 4MΩ Voltage High 4.8 ~ 5.2V Low Below 0.8V YES
- Go to 2"CHECK PCM/TCM" as below.
NO
- Replace "INPUT SPEED SENSOR" as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- CHECK PCM/TCM
- Ignition "ON" & Engine "OFF".
- Connect "INPUT SPEED SENSOR" connector.

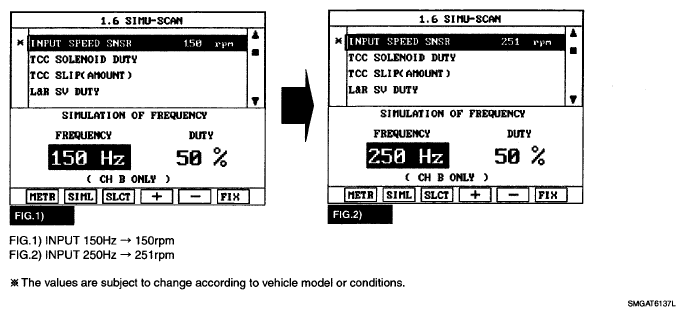

- Install scantool and select a SIMU-SCAN.
- Simulate frequency to INPUT SPEED SENSOR signal circuit.
- Is "INPUT SPEED SENSOR" signal value changed according to simulation frequency?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
