Signal Circuit Inspection

Measure resistance between each terminal of the sensor harness connector and TCM (PCM) harness connector as below.

Specification :

PIN SPECIFICATION

Pin No of "TRANSAXLE RANGE SWITCH"	C338 No.1	C338 No.3	C338 No.4	C338 No.7
Pin No of "TCM (PCM)" harness	C302 No.9	C302 No.6	C302 No.8	C302 No.7
Specification	0Ω	0Ω	0Ω	0Ω

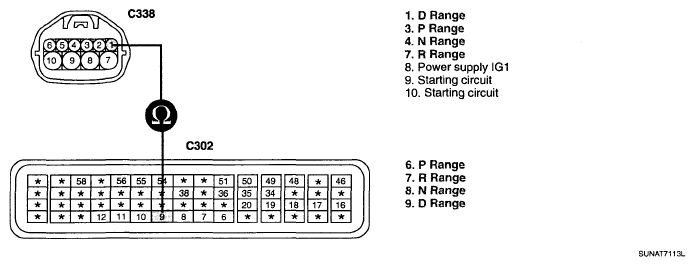

Fig 1: Measuring Resistance Between Terminal Of Sensor Harness Connector And TCM (PCM) Harness Connector

Courtesy of KIA MOTORS AMERICA, INC.

Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
