Home >> Kia >> 2007 >> Rondo Base >> Repair and Diagnosis (Single Page) >> Suspension >> Wheel Alignment >> Suspension System (Except TPMS) >> Front Suspension System >> Front Strut Assembly >> Components

Front Strut Assembly: Components

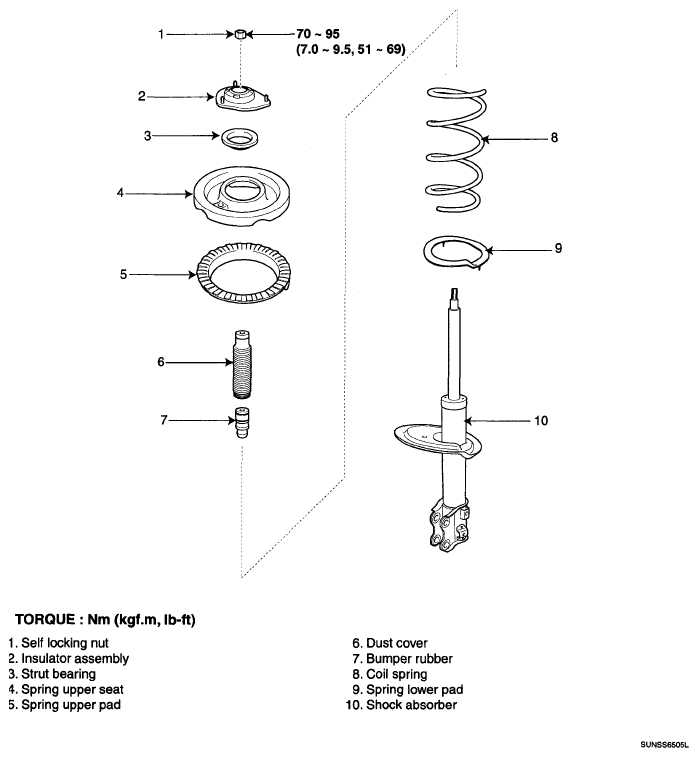

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications
G05186874Courtesy of KIA MOTORS AMERICA, INC.
