Audio Remote Control Switch Connector End View

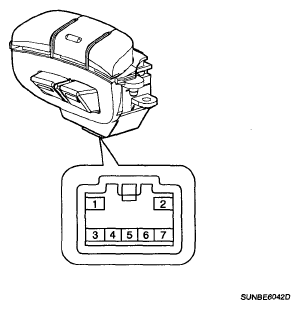

Fig 1: Audio Remote Control Switch Connector End View

G05187681

Courtesy of KIA MOTORS AMERICA, INC.
