Control Circuit Inspection (Etc Output2)

  1. Check for short to ground in control circuit
    1. Disconnect ECM connector
    2. Measure resistance between terminal 6 of the ETC motor harness connector and chassis ground

      Specification : Infinite

      Fig 1: Measuring Resistance Between Terminal 6 Of ETC Motor Connector And Chassis Ground
      G05182208
    3. Is resistance within the specification?

      YES

      • Go to next step

      NO

  2. Check for short to battery in control circuit
    1. Ignition "ON" & Engine "OFF"
    2. Measure voltage between terminal 6 of the ETC motor harness connector and chassis ground

      Specification : Approx. 0V

      Fig 2: Measuring Voltage Between Terminal 6 Of ETC Motor Connector And Chassis Ground
      G05182209
    3. Is voltage within the specification?

      YES

      • Go to next step

      NO

  3. Check for open in control circuit
    1. Ignition "OFF"
    2. Measure resistance between terminals 6 of the ETC motor harness connector and 72 of the ECM harness connector

      Specification : Approx. 0Ω

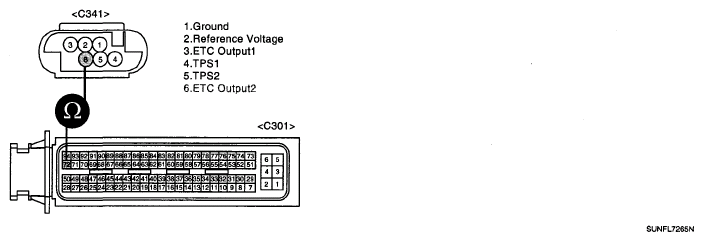

      Fig 3: Measuring Resistance Between Terminals 6 Of ETC Motor Connector And 72 Of ECM Connector
      G05182210
    3. Is resistance within the specification?

      YES

      NO
