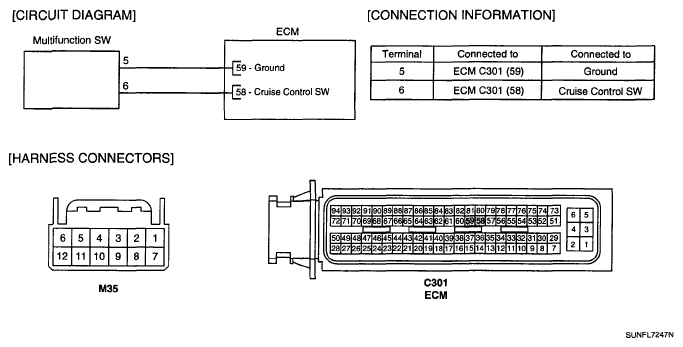

Home >> Kia >> 2007 >> Rondo Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> DTC Troubleshooting Procedures (2 Of 2) - 2.4L >> DTC P0564 Cruise Control Multi-Function Input "A" Circuit >> Schematic Diagram
