Power Circuit Inspection
- Ignition "OFF"
- Disconnect multi-function switch connector
- Ignition "ON" & Engine "OFF"

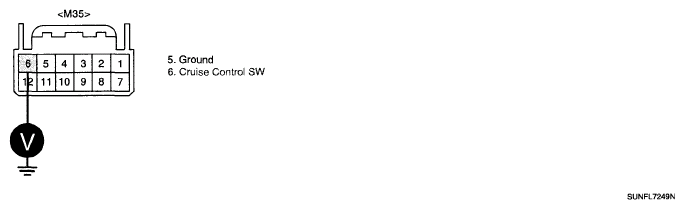

- Measure voltage between terminal 6 of the multi-function switch harness connector and chassis ground
Specification : Approx. B+
- Is voltage within the specification?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure
NO
- Check for an open or short to ground in the power circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
