Ground Circuit Inspection
- Ignition "OFF"
- Reconnect multi-function switch harness connector
- Disconnect ECM harness connector

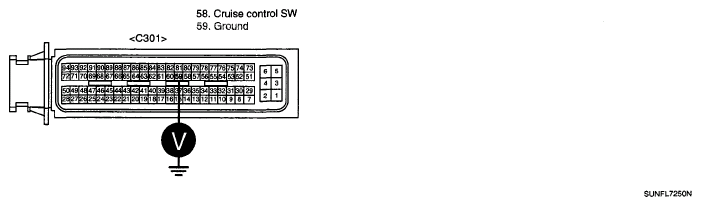

- Measure resistance between terminal 59 of the ECM harness connector and chassis ground
Specification : Approx. 0Ω
- Is resistance within the specification?
YES
- Go to "CONTROL CIRCUIT INSPECTION " procedure
NO
- Check for an open or short to ground in the power circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
