Control Circuit Inspection

Ignition "ON" & Eng. "OFF"

Measure the voltage between terminal 58 of the ECM harness connector and chassis ground. Refer to specifications

SPECIFICATION :

VOLTAGE SPECIFICATION

Switches				Reference Voltage (V)
Main	Set	Accel.	Cancel	Reference Voltage (V)
ON	OFF	OFF	OFF	Approx. B+
ON	ON	OFF	OFF	Approx. 0.6
ON	ON	ON	OFF	Approx. 0.5
ON	OFF	ON	OFF	Approx. 2~3
X	X	X	ON	Approx. 0

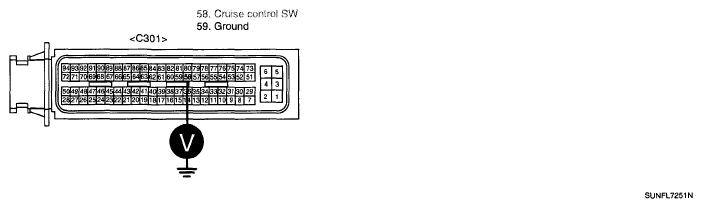

Fig 1: Measuring Voltage Between Terminal 58 Of ECM Connector And Chassis Ground

G05182172

Is voltage within the specification?
YES
- Go to TERMINAL AND CONNECTOR INSPECTION
NO
- Possibility of control circuit or component malfunction. Check open or short in the control circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  If OK, go to TERMINAL AND CONNECTOR INSPECTION
