Component Inspection

  1. Ignition "OFF"
  2. Measure resistance between terminals 1 and 3 of the FLS connector (Component side).

    SPECIFICATION :

    RESISTANCE SPECIFICATION

    Fuel Level Gauge
    Resistance (Ω)
    E (Empty) Approx. 182~186
    1/2 Approx. 65~67
    F (Full) Approx. 14~16

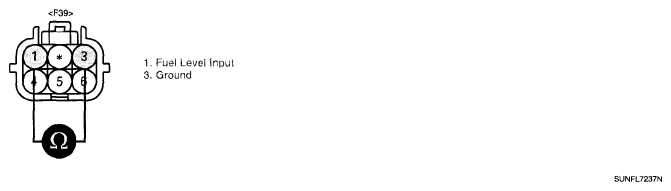

    Fig 1: Measuring Resistance Between Terminals 1 And 3 Of FLS Connector (Component Side)
    G05182149
  3. Is resistance within the specification?

    YES

    • Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO

    • Check FLS for contamination, deterioration, or damage. Substitute with a known-good FLS and check for proper operation. If the problem is corrected, replace FLS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
