Component Inspection

  1. Measure resistance between terminals 1 and 5 of the sensor connector (Component side).

    SPECIFICATION

    RESISTANCE SPECIFICATION

    Temp. (°C) Temp. (°F) Resistance (Ω)
    -10 14 8.7~9.7
    0 32 5.5~6.1
    10 50 3.6~3.9
    20 68 2.4~2.5
    30 86 1.6~1.7
    80 176 Approx. 0.3

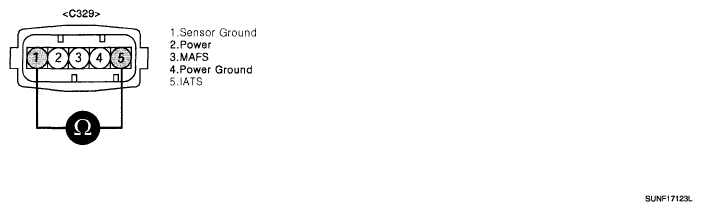

    Fig 1: Measuring Resistance Between Terminals 1 And 5 Of Sensor Connector (Component Side)
    G05182062
  2. Is resistance within the specification?

    YES

    • Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO

    • Check IATS for contamination, deterioration, or damage. Substitute with a known-good IATS and check for proper operation. If the problem is corrected, replace IATS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
