Charging System Test Procedure: Notes

Press ENTER to begin charging system test.

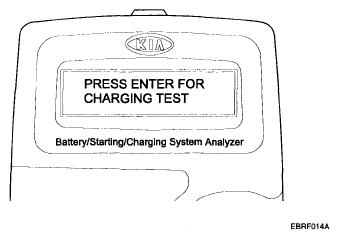

Fig 1: Identifying Tester Screen Display - Press Enter For Charging Test
Courtesy of KIA MOTORS AMERICA, INC.
ENTER button is pressed, the tester displays the actual voltage of alternator. Press ENTER to test the charging system.

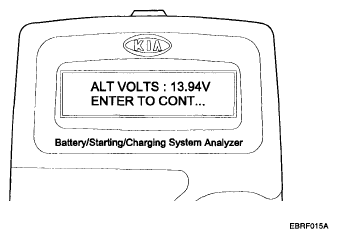

Fig 2: Identifying Tester Screen Display - Voltage Of Alternator
Courtesy of KIA MOTORS AMERICA, INC.
Turn off all electrical load and rev engine for 5 seconds with pressing the accelerator pedal.

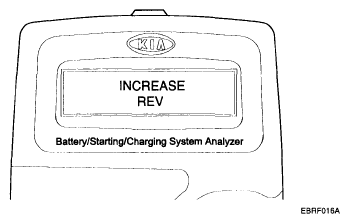

Fig 3: Identifying Tester Screen Display - Increase Rev
Courtesy of KIA MOTORS AMERICA, INC.
Press ENTER.

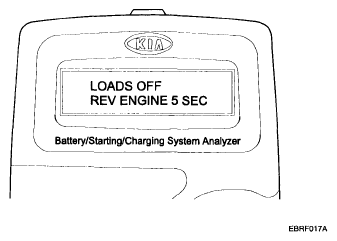

Fig 4: Identifying Tester Screen Display - Loads Off Rev Engine 5 Sec
Courtesy of KIA MOTORS AMERICA, INC.
The MICRO 570 analyzer charging system output at idle for comparison to other readings.

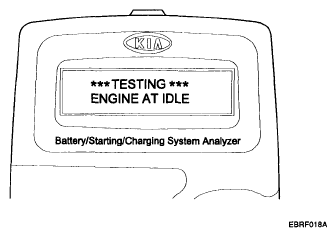

Fig 5: Identifying Tester Screen Display - Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.
Take a relevant action according to the test results by referring to the table below after shutting off the engine and disconnect the tester clamps from the battery.

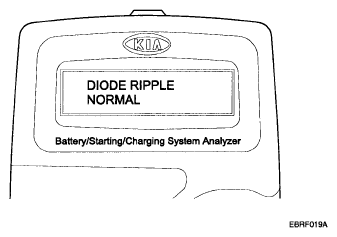

Fig 6: Identifying Tester Screen Display - Diode Ripple Normal
