Windshield Wiper / Washer Switch: Replacement

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

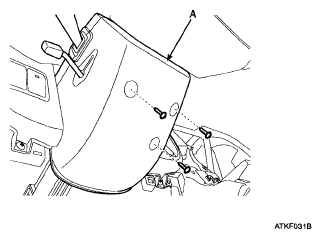

  1. Remove the steering column upper and lower shrouds (A) after removing 3 screws.
    Fig 1: Identifying Steering Column Upper And Lower Shrouds And Screws
    G04885095Courtesy of KIA MOTORS AMERICA, INC.

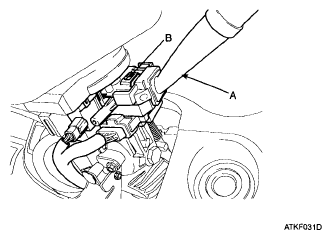

  2. Remove the wiper switch (A) by pushing the lock pin (B) after disconnecting the connector.
    Fig 2: Identifying Wiper Switch And Lock Pin
    G04885096Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
