Rain Sensor: Removal

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The rain sensor may not operate properly if contaminated. Protect the rain sensor surface by not removing the cover until installation time. The coupling pad on the rain sensor surface has adhesive strength. Take care when installing the sensor. If the sensor is separated from the windshield by force, the sensor or windshield may be damaged. Take care when removing the sensor.

Remove the sensor cover. When removing it, make sure take care to prevent damage. To remove it, press back the locking hook using the cover hole using an appropriate tool.

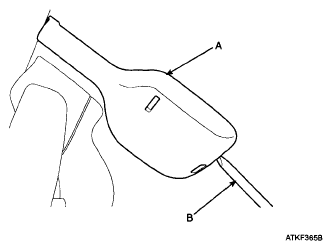

Fig 1: Identifying Sensor Cover
Courtesy of KIA MOTORS AMERICA, INC.
When removing rain sensor from the bracket, open the spring clip using the (-) driver, and then remove.

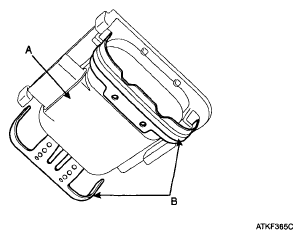

Fig 2: Identifying Rain Sensor And Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the wiring harness connector from the sensor.
Rain sensor is fitted with 2 spring slides by clip type on the front glass, it can be replaced easily. When replacing the front glass, take away the rain sensor from the existing glass.
After then attach it to new one again.
