Front Wiper Motor: Installation

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Install the wiper arm and blade to the specified position.

WIPER ARM AND BLADE SPECIFICATION

Specified position	A	B
Distance [in (mm)]	1.57+0.19/0 (40+5/0)	1.57+0.19/0 (40+5/0)

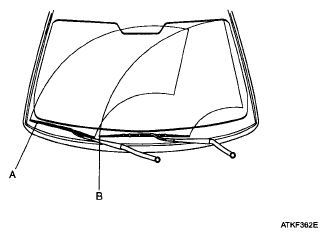

Fig 1: Identifying Wiper Arm And Blade Dimension

Courtesy of KIA MOTORS AMERICA, INC.

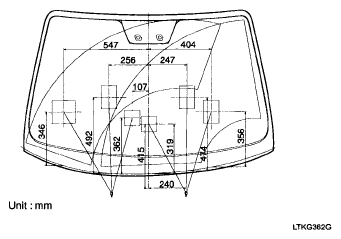

Set the washer nozzle on the specified spray position.

Fig 2: Identifying Washer Nozzle Spray Position
Courtesy of KIA MOTORS AMERICA, INC.
