Front Washer Motor: Inspection

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
  2. Connect positive (+) battery cables to terminal 2 and negative (-) battery cables to terminal 1 respectively.
  3. Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles. If they are abnormal, replace the washer motor.

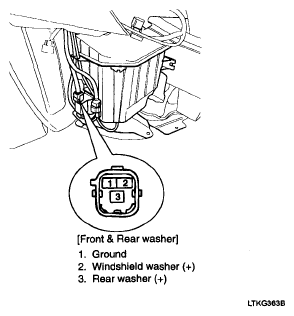

    Fig 1: Identifying Washer Motor Connector Terminals
    G04885122Courtesy of KIA MOTORS AMERICA, INC.

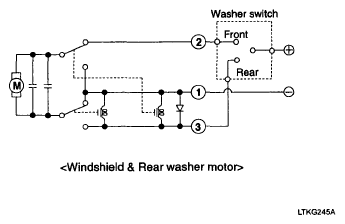

    Fig 2: Windshield And Rear Washer Motor Circuit Diagram
    G04885123Courtesy of KIA MOTORS AMERICA, INC.
