Cooling System: Installation: Thermostat: Notes

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Place thermostat in thermostat housing.
1. Install the thermostat with the jiggle valve upward.
2. Install a new thermostat (B).

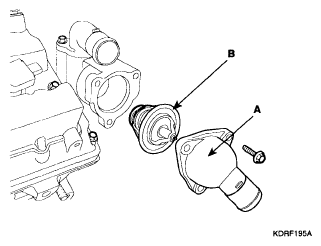

Fig 1: Identifying Water Inlet And Thermostat
Courtesy of KIA MOTORS AMERICA, INC.
Install water inlet (A).
Tightening torque

16.66-19.60 N.m (1.7-2.0 kgf.m, 12.30-14.47 lb-ft)
Fill with engine coolant.
Start engine and check for leaks.
