DRL Control Module: Inspection

  1. The daytime running unit (A) is integrated in the junction box.
  2. Daytime running unit (A) is installed at the right side strut housing.
    Fig 1: Identifying Daytime Running Unit
    G04863774Courtesy of KIA MOTORS AMERICA, INC.

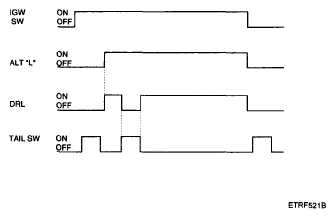

  3. Check that the light operate according to the following timing chart.
    Fig 2: Identifying Signal Waveform
    G04863775Courtesy of KIA MOTORS AMERICA, INC.
  4. If the daytime running light is not operated well, inspect the connector and terminals to be sure they are all making good contact.

    If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system. If the terminals look OK, go to step 5.

  5. Make these input tests at the connector by using ETM. If any test indicates a problem, find and correct the cause, then recheck the system.

    If all the input tests prove OK, the junction box (control unit) must be faulty; replace it.
