Power Steering Gear Box: Removal

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the both front wheel & tire assemblies.
Drain the power steering fluid.

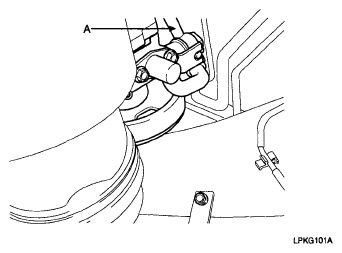

Remove the bolt (A) connecting steering column to universal joint.
Tightening torque N.m (kgf.m, lb-ft):

13-18 (1.3-1.8, 9.4-13.0)

Fig 1: Identifying Bolt Between Steering Universal Joint Assembly
Courtesy of KIA MOTORS AMERICA, INC.

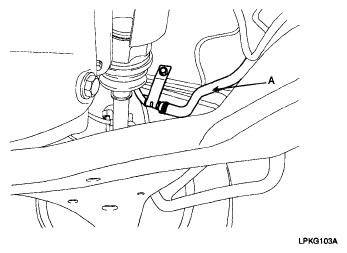

Disconnect the pressure tube (A) from the power steering oil pump by loosening eye bolt.
Tightening torque N.m (kgf.m, lb-ft):

65-75 (6.5-7.5, 47-54)

Fig 2: Identifying Pressure Tube
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the return hose (A)

Fig 3: Identifying Return Hose
Courtesy of KIA MOTORS AMERICA, INC.

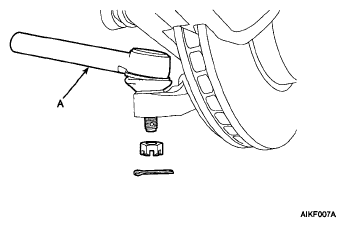

Loosen the split pin and castle nut, and then remove the tie rod end (A) from the knuckle by using a SST (09568-4A000).
Tightening torque N.m (kgf.m, lb-ft):

50-55 (5.0-5.5, 36-40)

Fig 4: Identifying Tie Rod End
Courtesy of KIA MOTORS AMERICA, INC.

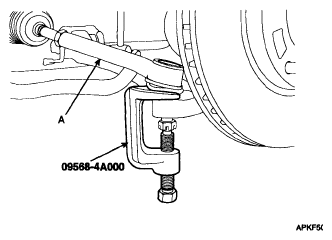

Fig 5: Disconnecting Tie Rod And Knuckle With Special Tool (09568-4A000)
Courtesy of KIA MOTORS AMERICA, INC.

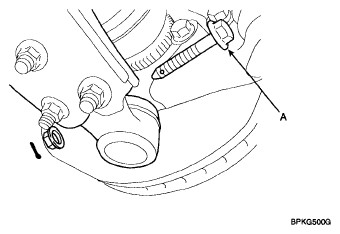

Remove the split pin and lower arm bolts and nut (A).
Tightening torque N.m (kgf-m, lb-ft):

90-120 (9.0-12.0, 65-87)

Fig 6: Identifying Split Pin, Nut And Lower Arm Nut
Courtesy of KIA MOTORS AMERICA, INC.

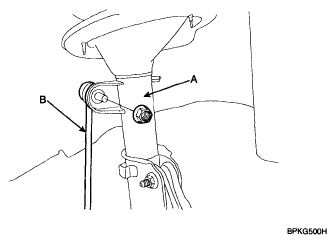

Disconnect the stabilizer link (B) from the strut assembly (A) by loosening nut.
Tightening torque N.m (kgf.m, lb-ft):

100-120 (10.0-12.0, 72-87)

Fig 7: Identifying Stabilizer Link And Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Repeat on the other side.
Remove the front and rear roll stopper bolts and nuts (A, B).

Fig 8: Identifying Engine Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Identifying Engine Mounting Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the sub-frame by loosening the bolts and nuts.

Fig 10: Identifying Twelve Bolts And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

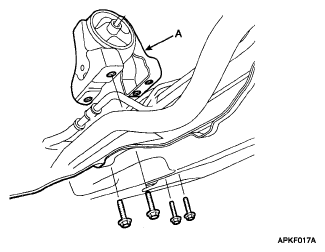

Remove the rear roll stopper (A) from the sub-frame.

Fig 11: Identifying Rear Roll Stopper
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the pressure tube (A) and return (B) from the valve body housing.
Tightening torque N.m (kgf.m, lb-ft):

12-18 (1.2-1.8, 9-13)

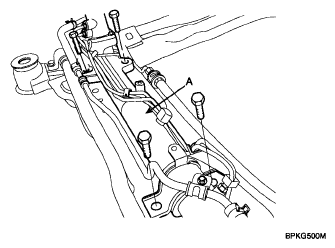

Fig 12: Identifying Pressure Tube And Return Tube
Courtesy of KIA MOTORS AMERICA, INC.
Remove the power steering gear box (A) from the sub-frame by loosening the mounting bolts.
Tightening torque N.m (kgf.m, lb-ft):

90-110 (9.0-11.0, 65-80)

Fig 13: Identifying Power Steering Gear Box
Courtesy of KIA MOTORS AMERICA, INC.
