Cylinder Head Assembly: Component

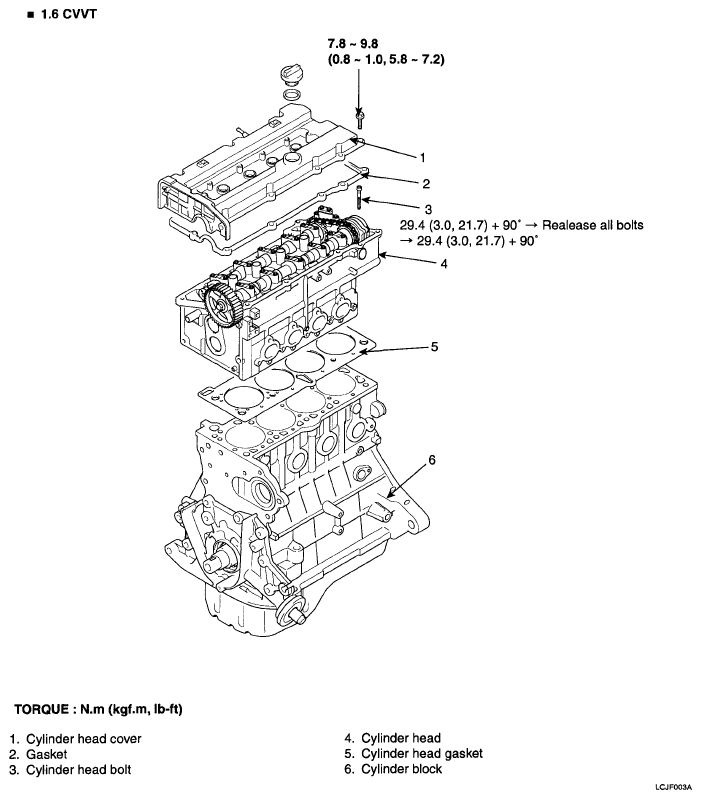

Fig 1: Identifying Cylinder Head Assembly Components And Tightening Torques (1 Of 2)
G04861678Courtesy of KIA MOTORS AMERICA, INC.

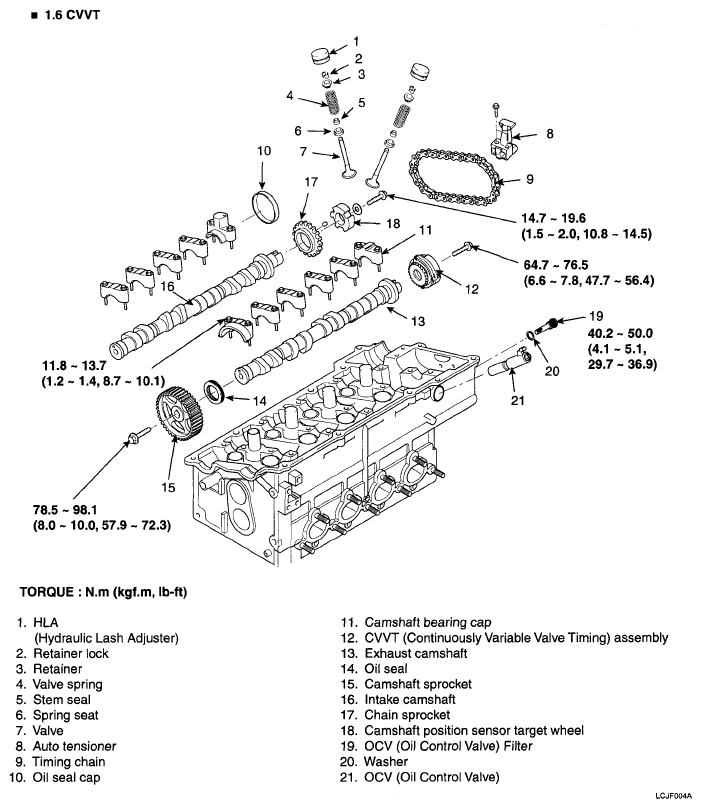

Fig 2: Identifying Cylinder Head Assembly Components And Tightening Torques (2 Of 2)
G04861679Courtesy of KIA MOTORS AMERICA, INC.
