Front Driveshaft: Inspection

  1. Check the drive shaft spline for wear or damage.
  2. Check that there is no water or foreign material in the BJ.
  3. Check the spider assembly for roller rotation, wear or corrosion.
  4. Check the groove inside the UTJ case for wear or corrosion.
  5. Check the dynamic damper for damage or cracks.

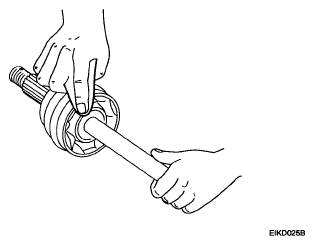

    Fig 1: Checking Driveshaft Spline
    G04805284Courtesy of KIA MOTORS AMERICA, INC.
