Home >> Kia >> 2007 >> Rio Base, Standard >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft >> Front Driveshaft >> Components

Front Driveshaft: Components

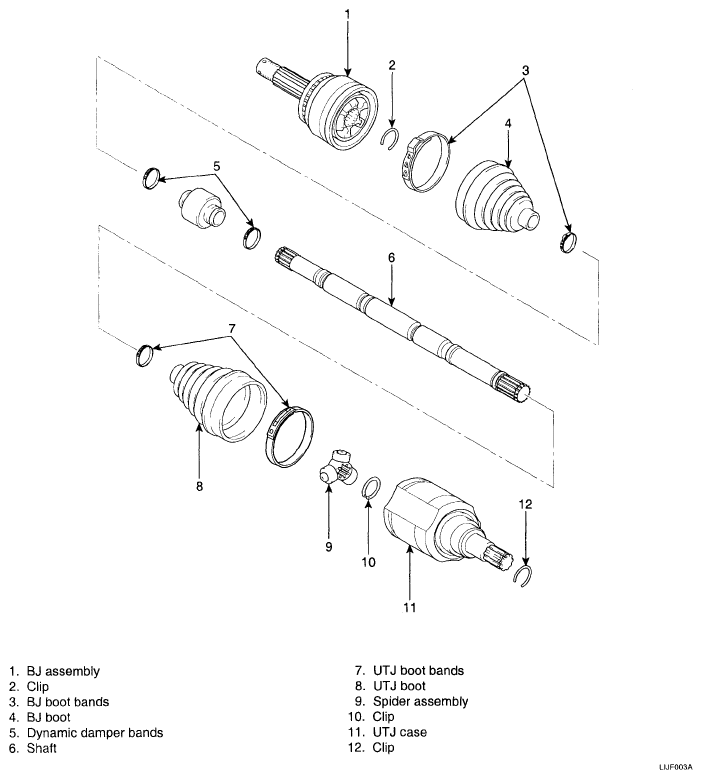

Fig 1: Exploded View Of Front Driveshaft Components

G04862727

Courtesy of KIA MOTORS AMERICA, INC.
