Monitor SCANTOOL Data

  1. Connect scantool to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "Parameters related to air/fuel ratio (HO2S, MAF, MAP, TPS, ECTS, PCSV, Injector, etc)" on the scantool.

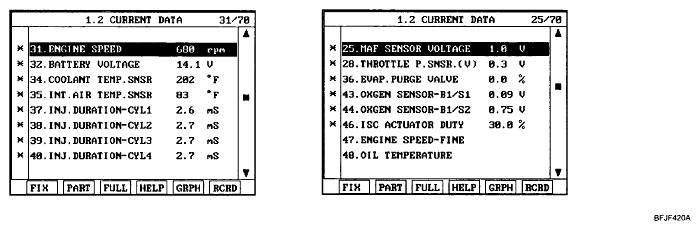

    Fig 1: Monitoring Parameter Related To Air/Fuel Ratio
    G04862176Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
