Rear Lower Arm: Installation

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Pre-tighten the lower arm (A) mounting bolts (B) to the cross member.

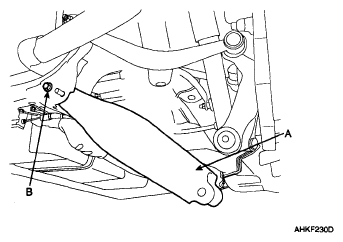

Fig 1: Identifying Lower Arm, Mounting Bolts And Cross Member
Courtesy of KIA MOTORS AMERICA, INC.
Install the spring (A), the lower seat, and the upper pad.

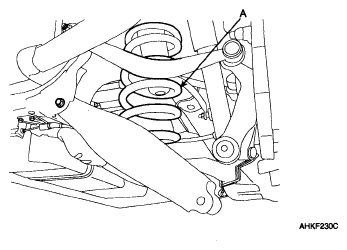

Fig 2: Identifying Spring
Courtesy of KIA MOTORS AMERICA, INC.
Install the lower arm bolt (B) to the rear knuckle and the lower arm bolt (C) to the cross member with a specified torque, while supporting the lower arm (A) with a jack as shown in the illustration.
Tightening torque Nm (kgf.m, lb-ft):

Bolt (B): 120-160 (12-16, 86.8-115.7)

Bolt (C): 200-270 (20-27, 144.7-195.3)

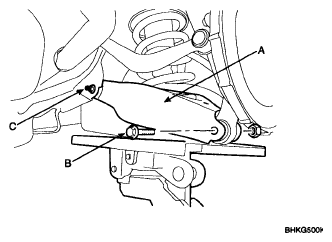

Fig 3: Identifying Lower Arm And Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the wheel and the tire (A) to the rear hub (B).
Tightening torque Nm (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)

Fig 4: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear wheel and tire (A).
